[SD+]iniBuilds A350_Tonyviation Profile

iniBuilds A350 for StreamDeck PLUS Profile by Tonyviation Download

LORBY's AxisAndOHs(AAO) is required to run this Profile.

This profile is designed by Tonyviation, featuring essential buttons and control switches needed for normal operation. The procedures are built on Normal Procedures.

This was created for fellow budget flight simmers who use the Stream Deck Plus as their sole device. I tested and modified the shared profiles. Chris's AAO script was a great help.

The Preflight and Engine Start-Up, as well as the Engine Shutdown processes, primarily require a mouse and keyboard for setup. Therefore, only the switches and buttons needed during actual flight (Hands-on Controller) are included (For example, switches like Logo Light, and most overhead panel switches are not included since they are not usually required during operations.)

012345

Installation Instructions

Since the installation process is complex, please follow the steps carefully without skipping any.
It requires Chris's script to be installed beforehand.

• Install AAO Script by Chris according to the AAO Manual here
  https://flightsim.to/file/89425/streamdeck-xl-and-sd-profile-for-inibuilds-a35x-aircraft
• Import the AxisAndOhsScripts_INI350_tony_x.x.xml file according to the AAO Manual. (Overwrite if it asks)
• Install the Stream Deck+ Profile : Double-click the StreamDeckProfile file to install the profile.
  (Ensure that your Stream Deck+ device is connected and updated to the latest version beforehand.)
• Enjoy your flight! ✈️



Developer's explanation

Each page can be navigated using buttons or by swiping left and right. (Order: EFIS - FCU - FWD - OVERHEAD - COM - CONF)

FCU Page

• Short push on the knob: PUSH
  Long press (over 0.5 seconds): PULL
• You can toggle each function by touching the round buttons on the Stream Deck display.
• AP 1 : Short push,  AP 2: Long push (more than 0.5s)

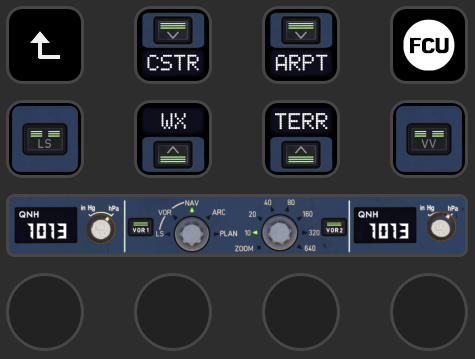

EFIS Page

• Short or Long press on the LS/VV switches toggles the CAPT or FO side.
• Switching between InHg and HPa can be done by touch.
• Touch for VOR1, VOR2 switches.
• In the iniBuilds A350, pushing the altimeter knob sets STD, while pulling sets the actual QNH. I'm not sure if this is an inverted behavior compared to A320

FWD Page

• Pressing TCAS button toggles ABV<->BLW and Long press to deselect.
• Pressing MASTER CAUTION and WARNING switch will reset both annunciations.
• Touching DU MASTER BRT knob toggles between INHIBIT <-> ON
• The SD for ECAM  can be selected by rotating knob, push to toggle
• Touching IDENT button activates Ident function.

OVERHEAD Page

Due to MSFS limitations, wiper switches were excluded since wipers do not affect raindrops on the windshield or visibility.

CONFIG Page

The config page allows you to set the flaps, landing gear, and speed brakes while controlling the FCU during the approach phase.

• Pressing and holding the FLAP UP switch fully retracts the flaps, while pressing and holding the DOWN switch sets the flaps to 40.

COM Page

This page is allows easy navigation to other pages.

• Because of how the A350 COM panel works, I couldn't read the actual parameters. The function works, but the STBY frequency might not match what's shown in-game.

Known Bugs

• Occasionally, the values on the Stream Deck display may not update. This can be resolved by switching pages.



Update Notes

v1.0 Initial release

If you have any features you'd like to add or if you find any errors or bugs, please leave a comment. I will check and work on them as time allows

Your sincerely, Tony👨🏻‍✈️
